SPESIFIKASI
| General | ||
|---|---|---|
| 1 | Unbalance of voltage (IEC 61000-4-30 class A) and current. | |
| 2 | Sampling Frequency | 10 MHz |
| 3 | Measurement Category | CAT IV 600 V |
| 4 | Ingress Protection | IP65 |
| 5 | Wireless Communication | WI-FI, GPS, GSM |
| 6 | Voltage Range | Up to ±8000 V |
| 7 | Class | A |
| B | Features |
|---|---|
| 1 | Remote control and data transfer through a built-in GSM modem |
| 2 | Anti – theft feature – SMS notification in the event of position change (built-in GPS receiver). |
| 3 | Real-time clock synchronized to GPS protocol. |
| 4 | Remote control of the analyzer via software : Sonel Analysis (Wi-Fi and GSM for Window) or Sonel Analysis Mobile (Wi-Fi for Android) |
| C | Measured Parameters |
|---|---|
| 1 | Voltages L1, L2, L3, N, PE (Five measurement inputs) – average, minimum, maximum and instant values within the range up to 1000 V, interoperability with voltage transducers. |
| 2 | Currents L1, L2, L3, N (four measurement inputs) – average, minimum, maximum and instant values, current measurement within the range up to 6 kA (depending on applied current clamp), interoperability with current transducers. |
| 3 | Frequency within the range of 40 Hz – 70 Hz |
| 4 | Current and voltage events recording with waveforms (up to 1 s) and RMS 1/2 graphs with 30 s maximum recording time. |

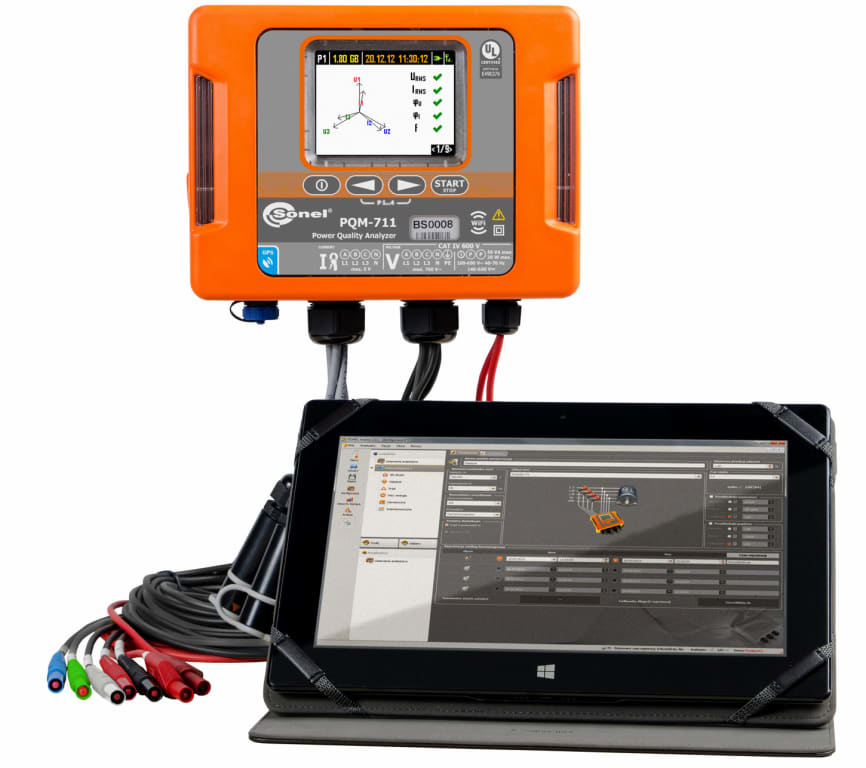

The Sonel PQM-711 versatile power quality analyser for remote analysis in the A class is a device suitable for use on all types of networks with a rated voltage range from 110 V to 1000 V either directly or indirectly through transformers.
