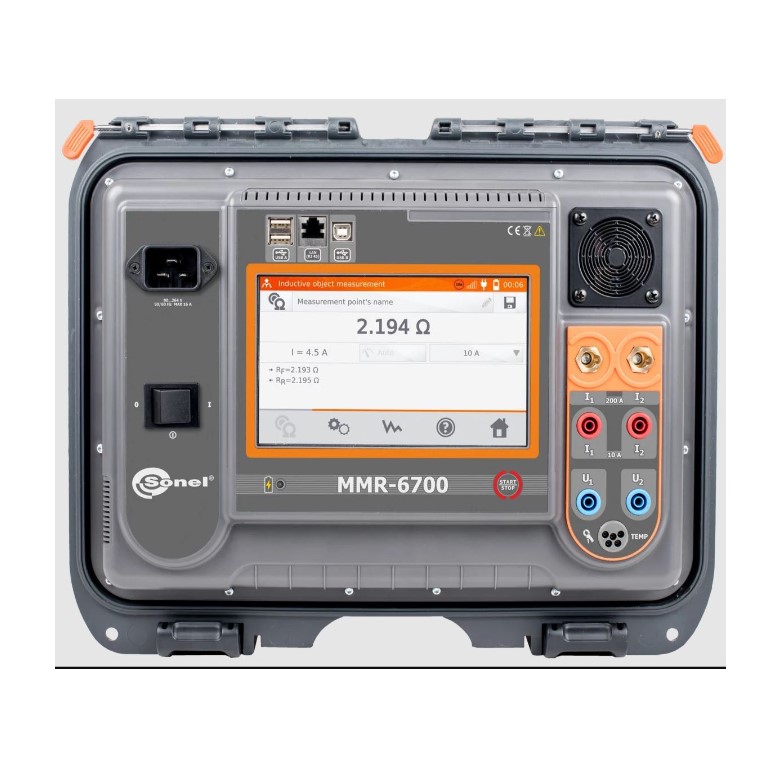

MMR-6700

MMR-6700

SPESIFIKASI

Measurements of resistive components

Range Resolution Accuracy Test current / Voltage
0.0…999.9 μΩ 0.1 μΩ ±(0.25% + 2 digits) 50 A<I≤200 A (200 mV)
1.0000…1.9999 mΩ 0.0001 mΩ ±(0.25% + 2 digits) 50 A<I≤100 A (200 mV)
0.0…999.9 μΩ 0.1 μΩ ±(0.25% + 2 digits) 20 A<I≤50 A (200 mV)
1.0000…3.9999 mΩ 0.0001 mΩ ±(0.25% + 2 digits) 20 A<I≤50 A (200 mV)
0.0…999.9 μΩ 0.1 μΩ ±(0.25% + 2 digits) 10 A<I≤20 A (160 mV)
1.0000…7.9999 mΩ 0.0001 mΩ ±(0.25% + 2 digits) 10 A<I≤20 A (160 mV)
0…999.9 μΩ 0.1 μΩ ±(0.25% + 2 digits) 10 A (20 mV)
1.0000…1.9999 mΩ 0.0001 mΩ ±(0.25% + 2 digits) 10 A (200 mV)
2.000…19.999 mΩ 0.001 mΩ ±(0.25% + 2 digits) 10 A (200 mV)
20.00…199.99 mΩ 0.01 mΩ ±(0.25% + 2 digits) 10 A / 1 A (2 V / 200 mV)
200.0…999.9 mΩ 0.1 mΩ ±(0.25% + 2 digits) 1 A / 0.1 A (2 V / 200 mV)
1.0000…1.9999 Ω 0.0001 Ω ±(0.25% + 2 digits) 1 A / 0.1 A (2 V / 200 mV)
2.000…19.999 Ω 0.001 Ω ±(0.25% + 2 digits) 0.1 A (2 V)
20.00…199.99 Ω 0.01 Ω ±(0.25% + 2 digits) 10 mA (2 V)
200.0…1999.9 Ω 0.1 Ω ±(0.25% + 2 digits) 1 mA (2 V)

m.v. – measured value

Measurements of inductive components

Range Resolution Accuracy Test current
0 μΩ…999.9 μΩ 0.1 μΩ ±(0.25% m.v. + 2 digits) 10 A
1.0000 mΩ…1.9999 mΩ 0.0001 mΩ ±(0.25% m.v. + 2 digits) 10 A
2.000 mΩ …19.999 mΩ 0.001 mΩ ±(0.25% m.v. + 2 digits) 10 A
20.00 mΩ…199.99 mΩ 0.01 mΩ ±(0.25% m.v. + 2 digits) 10 A / 1 A
200.0 mΩ …999.9 mΩ 0.1 mΩ ±(0.25% m.v. + 2 digits) 1 A / 0.1 A
1.0000 Ω…1.9999 Ω 0.0001 Ω ±(0.25% m.v. + 2 digits) 1 A / 0.1 A
2.000 Ω…19.999 Ω 0.001 Ω ±(0.25% m.v. + 2 digits) 0,1 A
20.00 Ω…199.99 Ω 0.01 Ω ±(0.25% m.v. + 2 digits) 10 mA
200.0 Ω…1999.9 Ω 0.1 Ω ±(0.25% m.v. + 2 digits) 1 mA
  • for measurements on inductive objects output voltage ≤ 5V
Download
Category

Description

Measure HV switches and transformers with one device

Versatile and multifunctional micrometer Sonel MMR-6700 – a single device for HV circuit breaker and transformer measurements. It is distinguished by a modern design and advanced solutions enabling measurements of resistive objects with high current. Additionally, the device has a module for measurement of inductive objects with current up to 10 A, which is a distinctive feature of MMR-6XXX series and a unique solution in its class.

Brand

Sonel
