MMR-650

MMR-650

SPESIFIKASI

Resistance measurement

Range Resolution Test current Accuracy
0…999.9 μΩ 0.1 μΩ 10 A ±(0.25% m.v. + 2 digits)
1.0000…1.9999 mΩ 0.0001 mΩ 10 A ±(0.25% m.v. + 2 digits)
2.000…19.999 mΩ 0.001 mΩ 10 A ±(0.25% m.v. + 2 digits)
20.00…199.99 mΩ 0.01 mΩ 10 A / 1 A ±(0.25% m.v. + 2 digits)
200.0…999.9 mΩ 0.1 mΩ 1 A / 0.1 A ±(0.25% m.v. + 2 digits)
1.0000…1.9999 Ω 0.0001 Ω 1 A / 0.1 A ±(0.25% m.v. + 2 digits)
2.000…19.999 Ω 0.001 Ω 0,1 A ±(0.25% m.v. + 2 digits)
20.00…199.99 Ω 0.01 Ω 10 mA ±(0.25% m.v. + 2 digits)
200.0…1999.9 Ω 0.1 Ω 1 mA ±(0.25% m.v. + 2 digits)

„m.v.” – measured value.

Download
Category

Description

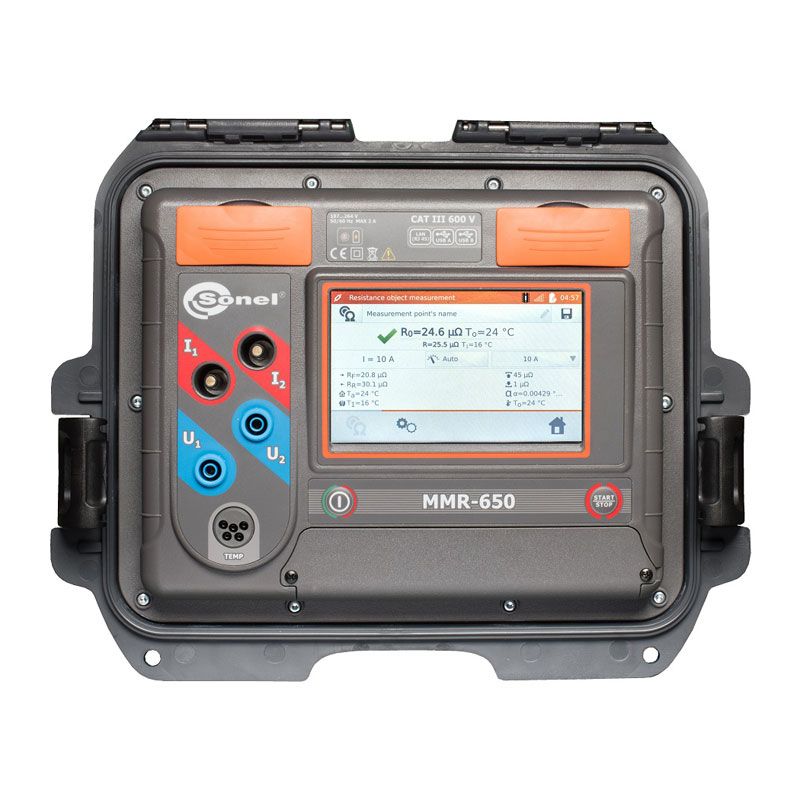

Measure winding resistance and low resistance with MMR-650

Ready to work even in extreme conditions, the winding resistance and small resistance meter Sonel MMR-650 has been created to accurately measure small resistances of resistive and inductive objects. The instrument can be used to measure the resistance of both transformer windings – including amorphous-core transformers – and resistive objects. The MMR-650 meter is dedicated to use in power plants, maintenance companies and railway industry, among others.

Brand

Sonel

Reviews

There are no reviews yet.

Be the first to review “MMR-650”
