MIC-30

MIC-30

SPESIFIKASI

Insulation resistance measurement

Measuring range:

  • Un=50 V: 50 kΩ…250.0 MΩ
  • Un=100 V: 100 kΩ…500.0 MΩ
  • Un=250 V: 250 kΩ…2.000 GΩ
  • Un=500 V: 500 kΩ…20.00 GΩ
  • Un=1000 V: 1000 kΩ…100.00 GΩ
Range Resolution Accuracy
0.0…999.9 kΩ 0.1 kΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 MΩ 0.001 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
10.00…99.99 MΩ 0.01 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…250.0 MΩ (for Un = 50 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…500.0 MΩ (for Un = 100 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
100.0…999.9 MΩ (for Un ≥ 250 V) 0.1 MΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…2.000 GΩ (for Un = 250 V) 0.001 GΩ ± (3% m.v. + 8 digits) [± (5% m.v. + 8 digits)]*
1.000…9.999 GΩ (for Un ≥ 500 V) 0.001 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…20.00 GΩ (for Un ≥ 500 V)** 0.01 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
10.00…99.99 GΩ (for Un = 1000 V) 0.01 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*
100.00 GΩ (for Un = 1000 V) 0.1 GΩ ±(4% m.v. + 6 digits) [±(6% m.v. + 6 digits)]*

“m.v.” – measured value

* for WS-04 adapter

** for WS-04 adapter, range up to 10 GΩ

Low-voltage measurement of continuity of circuit and resistance

Measuring range according to EN 61557-4: 0.10…1999 Ω

Range Resolution Accuracy
0.00…19.99 Ω 0.01 Ω ±(2% m.v. + 3 digits)
20.0…199.9 Ω 0.1 Ω ±(2% m.v. + 3 digits)
200…1999 Ω 1 Ω ±(2% m.v. + 3 digits)

DC and AC voltage measurement

Range Resolution Accuracy
0…299.9 V 0.1 V ±(2% m.v. + 6 digits)
300…600 V 1 V ±(2% m.v. + 2 digits)
  • Frequency range: 45…65 Hz

Capacitance measurement

Range Resolution Accuracy
1…999 nF 1 nF ±(5% m.v. + 10 digits)
1.00…9.99 μF 0.01 μF ±(5% m.v. + 10 digits)
  • Capacitance measurement result displayed after measurement of RISO
  • For measurement voltages below 100 V and measured resistance of less than 10 MΩ, the error of capacitance measurement is unspecified

Low-current resistance measurement

Range Resolution Accuracy
0.00…199.9 Ω 0.1 Ω ±(3% m.v. + 3 digits)
200…1999 Ω 1 Ω ±(3% m.v. + 3 digits)
Download
Category

Description

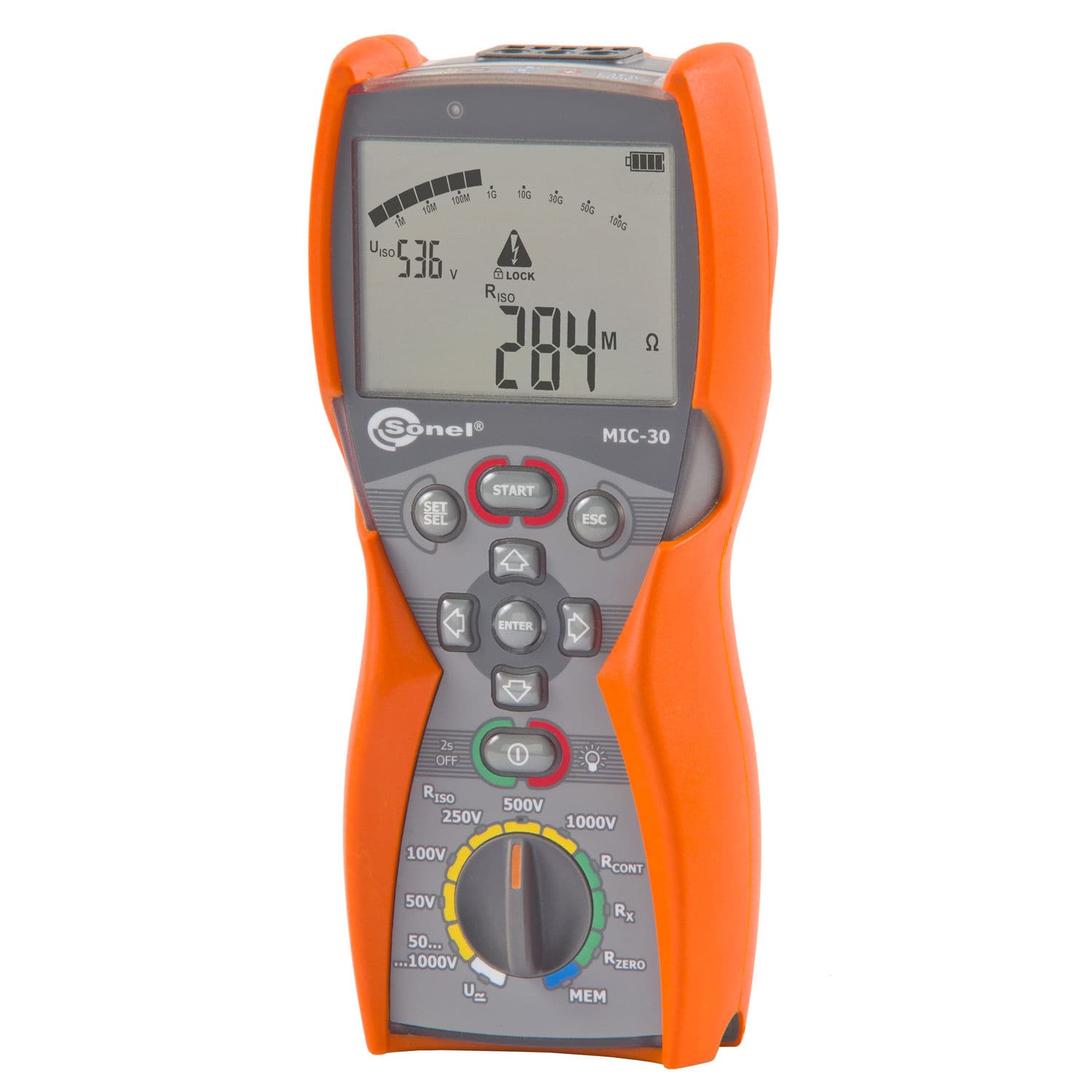

The Sonel MIC-30 insulation resistance meter is a perfect response to the expectations of users who deal with the testing of insulation of electrical installations in a repeated manner, e.g. in single- and multi-family buildings, as well as in public utility buildings and small plants and workshops. The device enables the setting of the measurement voltage within the range from 50 V to 1000 V in 10 V steps, which makes it perfect for diagnosing electrical, control, telecommunications and ICT facilities.

Brand

Sonel
