MIC-2501

MIC-2501

SPESIFIKASI

Insulation resistance measurement

Measurement range acc. to IEC 61557-2

for RISOmin = (UISOnom / IISOnom)…1 TΩ (IISOnom=1 mA)

Range Resolution Accuracy
0.0…999.9 kΩ 0.1 kΩ ±(3% m.v. + 20 digits)
1.000…9.999 MΩ 0.001 MΩ ±(3% m.v. + 20 digits)
10.00…99.99 MΩ 0.01 MΩ ±(3% m.v. + 20 digits)
100.0…999.9 MΩ 0.1 MΩ ±(3% m.v. + 20 digits)
1.000…9.999 GΩ 0.001 GΩ ±(3% m.v. + 20 digits)
10.00…99.99 GΩ 0.01 GΩ ±(3% m.v. + 20 digits)
100.0…999.9 GΩ 0.1 GΩ ±(3% m.v. + 20 digits)
1000 GΩ 1 GΩ ±(3% m.v. + 20 digits)

“m.v.” – measured value

Low-voltage measurement of resistance and circuit continuity

Range Resolution Accuracy
0.00…19.99 Ω 0.01 Ω ±(2% m.v. + 3 digits)
20.0…199.9 Ω 0.1 Ω ±(2% m.v. + 3 digits)
200…999 Ω 1 Ω ±(2% m.v. + 3 digits)

DC and AC voltage measurement

Range Resolution Accuracy
0…299.9 V 0.1 V ±(3% m.v. + 2 digits)
300…750 V 1 V ±(3% m.v. + 2 digits)
  • frequency range: 45…65 Hz

Values of measured resistance depending on measurement voltage

Voltage UISO Measurement range
up to 100 V 50 GΩ
200 V…400 V 100 GΩ
500 V…900 V 250 GΩ
1000 V…2400 V 500 GΩ
2500 V 1000 GΩ
Download
Category

Description

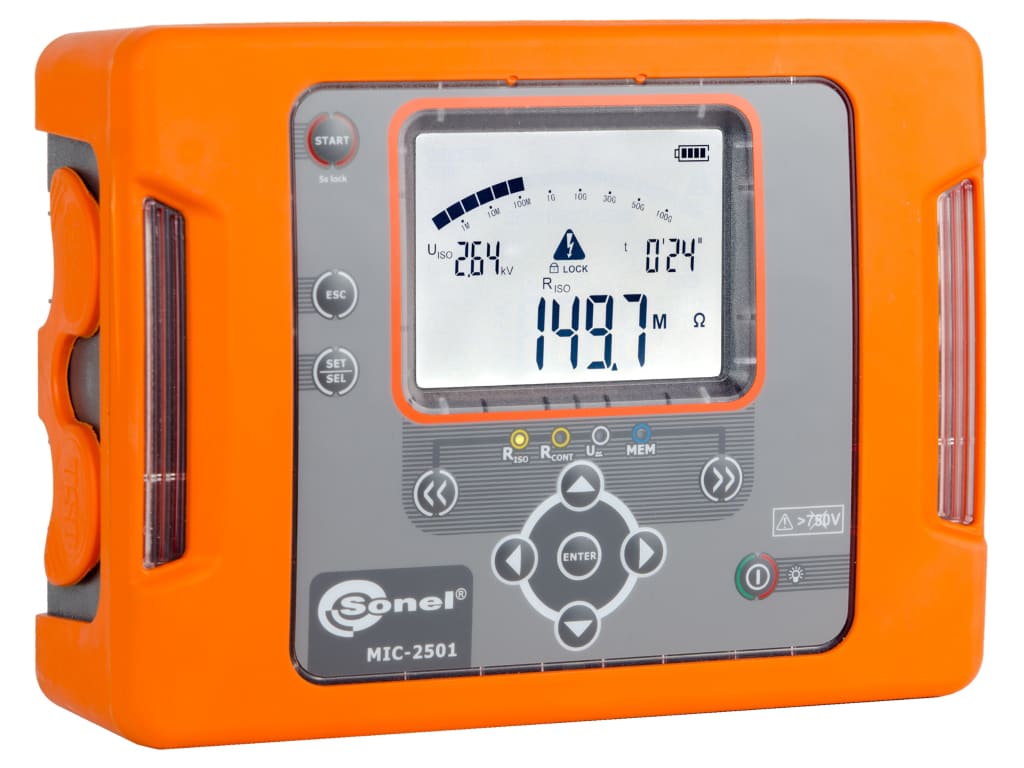

The functional insulation resistance meter Sonel MIC-2501 surprises with numerous functions hidden in a neat and handy form. Due to its parameters, its robust casing with IP 65 protection level, its low battery power consumption and the possibility of recharging during measurements, the meter is a reliable tool that can be used in many areas. It is ideal for checking industrial installations and catenary networks, and is also successfully used in residential buildings. The advantages of this equipment are especially appreciated by electricians working in maintenance, testing motors, cables and street lighting. The Sonel MIC-2501 meter is also useful for measurements during construction and maintenance of photovoltaic installations. It is a reliable solution created for the needs of telecommunications network installers and heating network operators, facilitating the control of the alarm system of pre-insulated pipes.

Brand

Sonel
