MRU-30

MRU-30

SPESIFIKASI

Measurement functions Measurement range Display range Resolution Accuracy
Interference voltage 0 V…100 V 0 V…100 V 1 V ±(5% m.v. + 2 digits)
Resistance of earth connection and equipotential bonding 0.13 Ω…1999 Ω acc. to EN 61557-4 0,00 Ω…1999 Ω from 0.01 Ω ±(2% m.v. + 3 digits)
Earth resistance
2-pole method 0.00 Ω…9999 Ω 0.00 Ω…9999 Ω from 0.01 Ω from ±(3% m.v. + 3 digits)
3-pole and 4-wire method 0.53 Ω…9999 Ω acc. to EN 61557-5 0.00…9999 Ω from 0.01 Ω from ±(3% m.v. + 3 digits)
3-pole + clamp method 0.00 Ω…9999 Ω 0.00 Ω…9999 Ω from 0.01 Ω from ±(3% m.v. + 3 digits)
two-clamp method 0.00 Ω…99.9 Ω 0.00 Ω…99.9 Ω from 0.01 Ω from ±(10% m.v. + 8 digits)
auxiliary electrodes resistance 0 Ω…19.9 kΩ 0 Ω…19.9 kΩ from 1 Ω ±(5% (RE +RH+RS) + 8 digits)
Earth resistivity 0.0 Ωm…999 kΩm 0.0 Ωm…999 kΩm from0.1 Ωm Depends on the accuracy of the RE 4p measurement, but not less than ±1 digit
Leakage current 0.0 mA…5.00 A 0.0 mA…5.00 A from 0.1 mA from ±(5% m.v. + 5 digits)

“m.v.” – measured value

Download
Category

Description

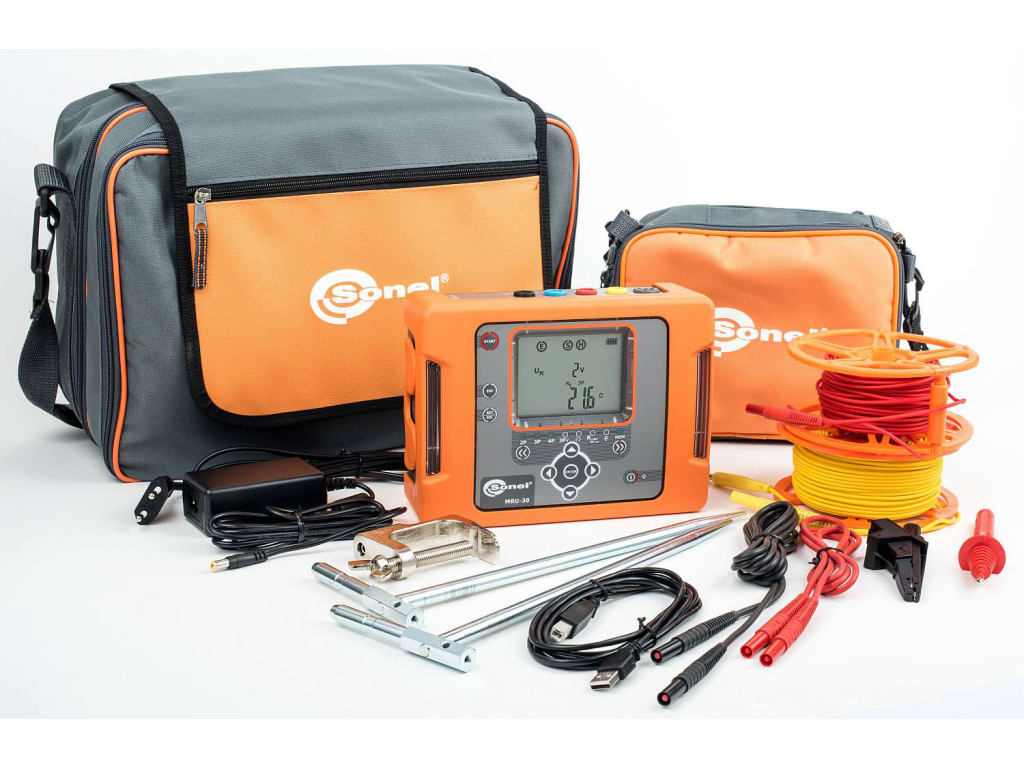

The MRU-30 meter is surprisingly versatile in nature. The instrument can be used to perform single earthing measurements as well as multiple earthing measurements using additional clamps or electrodes. Additional capabilities of this handy device include measurement of soil resistivity using the Wenner method, as well as verification of the continuity of equalising connections and protective conductors. Another advantage of the Sonel MRU-30 meter is the clear transmission of information alerting the user to possible dangers or detected irregularities. Information appears on the screen both before and after the test.

Brand

Sonel
