Description

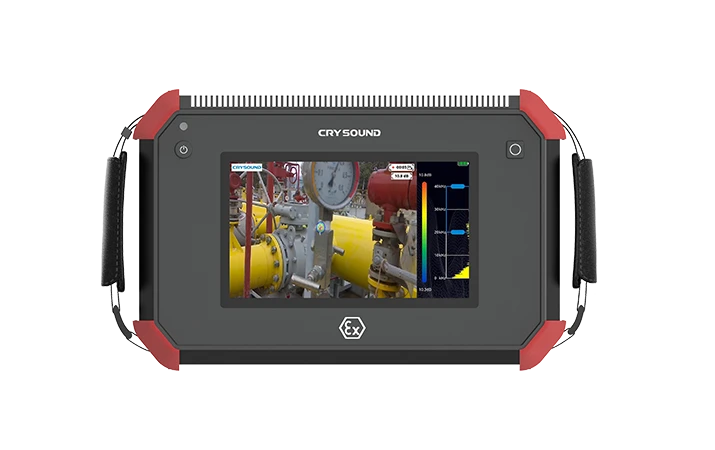

CRY2624 Industrial Acoustic Imager is suitable for use in explosion-proof scenarios in chemical and energy industry. The device adopts the aluminum alloy shell, which is sturdy and durable, and can adapt to the complex and changeable working environment. Real-time sound image display, helping the detection of pressurized or vacuum leaks significantly faster compared to other previous methods.
Technical specification
| Camera FOV |
62° |
| Camera focal length |
3.04mm fixed focal length |
| Camera pixel |
8 million pixel |
| Resolution |
1024*600 (614,400 pixels) |
| Size |
7 inch |
| Touch screen |
Capacitive touch screen |
| Brightness |
Adjustable |
| Photo notes |
Up to 5 photos notes for reference |
| Source |
Show single or multiple sources |
| Standard palettes |
3: Grayscale, Ironbow, Blue-Red |
| Playback function |
View photos, videos anytime, and add notes or tags |
| Internal storage |
About 8G |
| External storage |
TF memory card, at least 64G, expandable to 256G |
| Data storage format |
jpg（Picture）, mp4（Video）wav (Audio) |
| Video length |
5 minutes |
| Digital export |
TF Card |
| Battery capacity |
1×6600mAH@7.2V Rechargeable battery and 1×external battery package, continuous |
| Battery life |
4+6 hours operation time |
| Charger |
USB Type-C port，
USB PD protocol supported, 15W |
| Power consumption |
15W for battery charge；
29W for maximum power consumption |
| Energy management |
Sleep/Auto power off modes |
| USB 3.0 Type-C USB host port |
| 3.5mm headphone socket |
| Operating environment |
-20℃ – +50℃，
10%-95% no condensation |
| Storage temperature |
-20℃ – +60℃ |
| Charging temperature |
10℃ – +45℃ |
| Ingress Protection (IP) |
IP54 |
| Size |
272mm×174mm×42mm |
| Weight |
1.7kg |
| Warranty |
2 years |
| Self-diagnostic notification |
Array-health test function to identify when microphone array needs attention |
| System |
Linux system |
| ATEX (II 3G Ex ic IIC T5 Gc), CE, FCC, RoHS-compliant, MSDS, CNEX |
| English, French, Chinese, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish |
| Report types |
Gas/Electricity, ISO 50001-compliant |
| Analysis |
Waveform, Spectrum, Spectrogram, leakage assessment, discharge type discrimination |
