Description

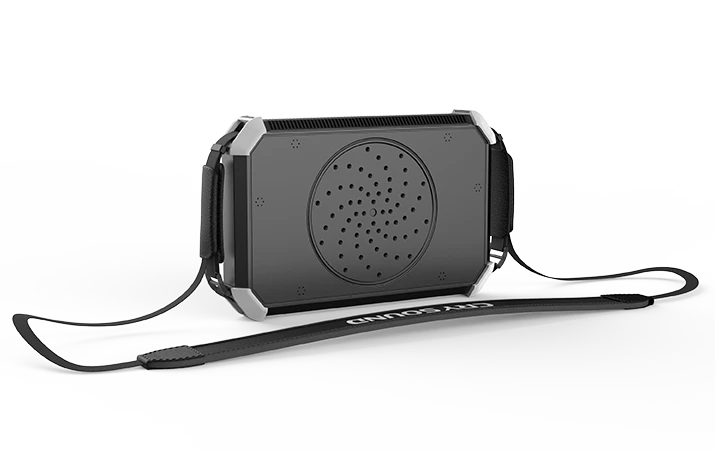

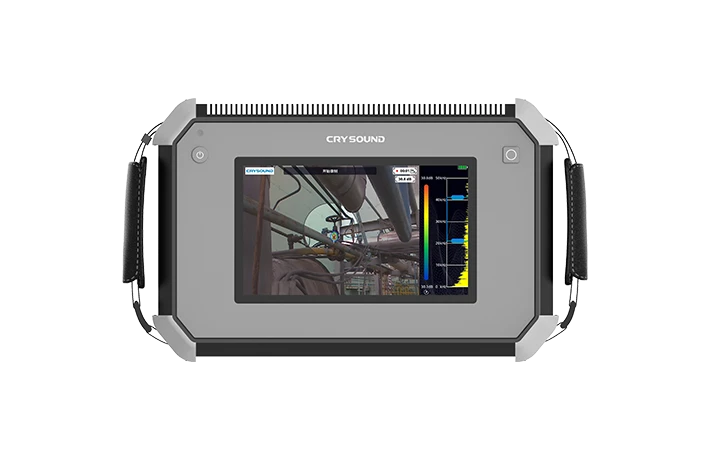

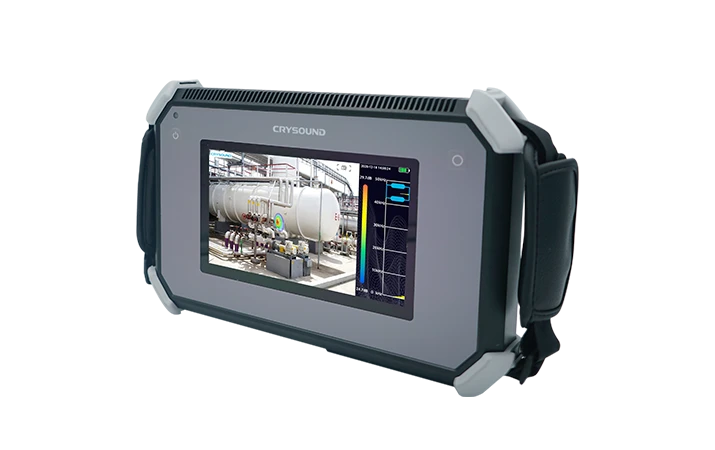

The CRYSOUND CRY2620 Industrial Acoustic Imager is easy to operate and can be used quickly. The device adopts an aluminum alloy shell, which is sturdy and durable and can adapt to complex and changeable working environments. Real-time sound image display, helping the detection of pressurized or vacuum leaks significantly faster compared to other previous methods.
CRY2620 only needs to adjust the two parameters of the test frequency range and the test dynamic range to meet the vast majority of test requirements.
The device supports camera mode, video mode, and flexible on-site data recording. The large-capacity TF data storage card can be expanded, and the test results can be quickly exported and reported. It can help enterprises to reduce losses caused by gas leakage, partial discharge and other accidents.
Technical specification
| Camera FOV |
62° |
| Camera focal length |
3.04mm fixed focal length |
| Camera pixel |
8 million pixel |
| Resolution |
1024*600 (614,400 pixels) |
| Size |
7 inch |
| Touch screen |
Capacitive touch screen |
| Brightness |
Adjustable |
| Photo notes |
Up to 5 photos notes for reference |
| Source |
Show single or multiple sources |
| Standard palettes |
3: Grayscale, Ironbow, Blue-Red |
| Playback function |
View photos, videos anytime, and add notes or tags |
| Internal storage |
About 8G |
| External storage |
TF memory card, at least 64G, expandable to 256G |
| Data storage format |
jpg（Picture）, mp4（Video）wav (Audio) |
| Video length |
5 minutes |
| Digital export |
TF Card |
| Battery capacity |
1×6600mAH@7.2V Rechargeable battery and 1×external battery package, continuou |
| Battery life |
4+6 hours operation time |
| Charger |
USB Type-C port，USB PD protocol supported, 15W |
| Power consumption |
15W for battery charge；29W for maximum power consumption |
| Energy management |
Sleep/Auto power off modes |
| USB 3.0 Type-C USB host port |
| 3.5mm headphone socket |
| Operating environment |
-20℃- +50℃，10%-95% no condensation |
| Storage temperature |
-20℃ – +60℃ |
| Charging temperature |
10℃ – +45℃ |
| Ingress Protection (IP) |
IP54 |
| Size |
272mm×174mm×42mm |
| Weight |
1.7kg |
| Warranty |
2 years |
| Self-diagnostic notification |
Array-health test function to identify when microphone array needs attention |
| System |
Linux system |
| Certification |
CE, FCC, RoHS-compliant |
| English, French, Chinese, German, Italian, Japanese, Korean, Norwegian, Polish, Portuguese, Russian, Spanish, Swedish |
| Report types |
Gas, ISO 50001-compliant |
| Analysis |
Waveform, Spectrum, Spectrogram, leakage assessment |
