SPESIFIKASI
| Measuring range | |
| Measuring range comp. pressure | 0 … 8.87 bar @ 20 °C |
| Measuring range density | 0 … 60 g/l |
| Measuring range pressure | 0 … 16 bar abs. |
| Overload safety of the sensor | 48 bar |
| Burst pressure | 140 bar |
| Accuracy specifications | |
| Accuracy of pressure measurement | 0.05 % FS |
| Accuracy of density measurement | 0.6 % FS |
| Compensated temperature range | -10 … +50 °C |
| Communication | |
| Interface | WIKA-Wireless |
| Data exchange | “myWIKA device” app (available free of charge in Google Play Store and Apple App Store) |
| Voltage supply | |
| Power supply | 3 x 1.5 V AA alkaline batteries |
| Battery life | Typically 2,000 … 2,500 h (without backlighting and WIKA-Wireless not active) |
| Battery status display | Symbol display, with 4 bars displaying the battery status in segments of 25 % |
Simple operation

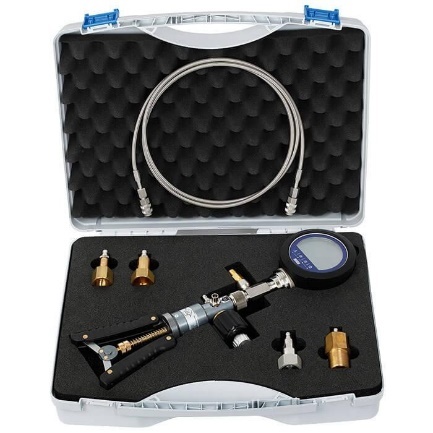

The robust modular calibration system model BCS10 serves for the inspection of the SF₆ gas density and pressure measuring instruments by means of comparative measurements. This calibration system is used to check quickly and easily both density-based and pressure-based mechanical and electronic measuring instruments
