SPESIFIKASI
| Parameter | Description |
|---|---|
| measurement category | CAT III 1000 V / IV 600 V |
| range of voltage | 6,0 …. 1000 V AC/DC |
| LED bar | 7 segments |
| backlit LCD display | √ |
| continuity test | √ |
| 10 mA / 30 mA RCD trip test | √ |
| built-in torch light | √ |
| single-pole phase tester | √ |
| 2-pole phase rotation tester | √ |
| IP65 protection class | √ |
| resistance test | √ |
| freeze display | √ |
| phase identification | √ |
| insulation type acc. to EN 61010-1 | double-insulation, class II |
| instrument power supply | 2 x LR03 AAA 1.5 V (recommended alkaline cells) |
| operating frequency range | 16…400 Hz |
| min. recovery time after operating for 30 s | 240 s |
| continuity test: light and sound | signal for R ≤ 400 kΩ |
| range of resistance measurement | 1…1999 Ω |
| input impedance | approx. 300 kΩ |
| range for single-pole phase indicator | 100…1000 V |
| min. activation voltage | ±6 V AC/DC |
| operating temperature | -15…+55°C | 5…131°F |
| storage temperature | -20…+70°C | -4…+158°F |
| max. humidity | 95% |
| max. operating altitude | 2000 m | 6562 ft |
| auto-off time | 10 s / 30 s (HOLD mode) |
| display | LCD, 3½ digits, 1999 read-out with function indicators |
| electromagnetic compatibility in accordance with standards | EN 61326-1, EN 61326-2-2 |
| conformance with the requirements of standards | EN 61010-1, EN 61243-3 |
| quality standard | ISO 9001 |

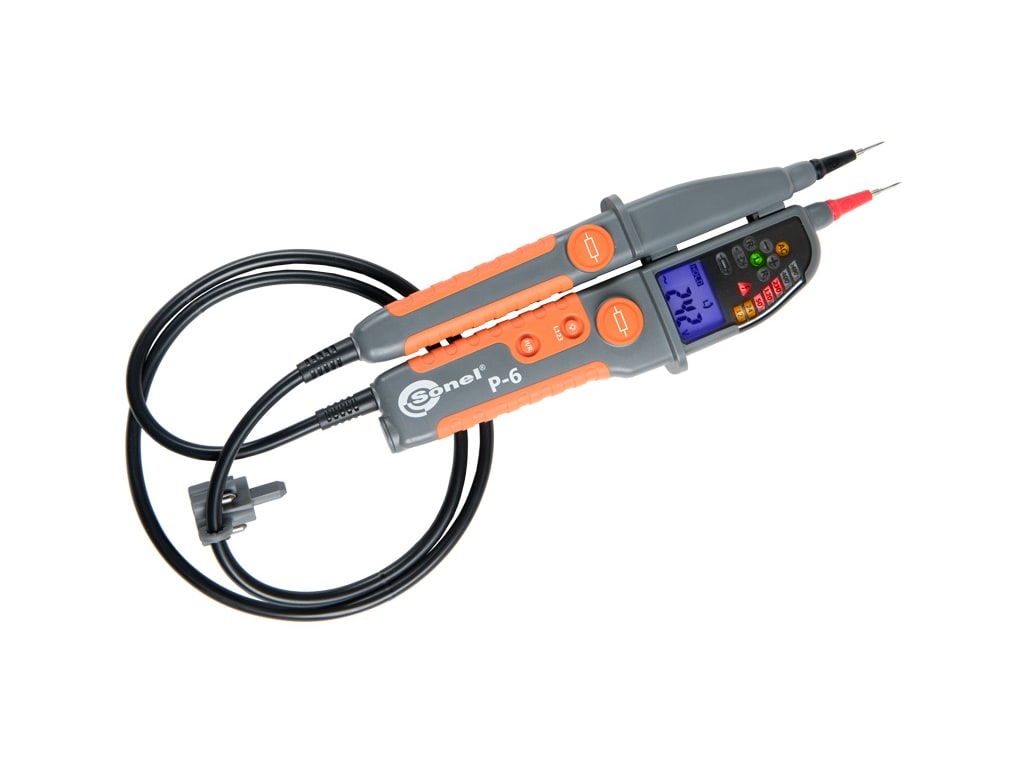

The Sonel P-6 bipolar voltage indicator is a reliable, extremely durable and safe tester, which allows to check voltage, continuity of circuit and phase sequence. It is designed to operate in the harshest environments, both industrial and commercial. Advanced technology, high level security and ease of use are the key features of the P-6.
