SPESIFIKASI
| ELECTRICAL | Typical Data | Test Method |
| AC Dry Withstand /1 min. | 15kV min./25kV min.(Sealed) | IEC |
| AC Wet Withstand / 1 min. | 15kV min./25kV min.(Sealed) | IEC |
| AC Dry Long term Withstand 4hrs. | 8.6kV min./14.4kV min.(Sealed) | IEC |
| Dielectric Strength | 25kV min./42kV min.(Sealed) | IEC243 |
| Volume Resistance | 1×1014 O·cm min | IEC63 |
| Dielectric Constant | 3 max. | IEC250 |
| Continuous Temperature Limit | -40°C to 100°c | IEC216 |
| PHYSICAL | Typical Data | Test Method |
| Tensile Strength | 10 Mpa min. | ASTM 0638 |
| Ultimate Elongation | 400% min. | ASTM 0638 |
| Low Temperature Flexiblity(-40°C ,4hrs) | No cracking | ASTM 02671 |
| Density | 1.3g/cm3 | ASTM 0792 |
| Hardness | 42 Shore D | ASTM 02240 |
| Water a bsorption(23°C ,14days) | 0.5% max. | IS062 |
| Tracking and Erosion Resistance | No Tracking or erosion to top surface or flame. Failure after:200minutes |
ASTM 02303 |
| Flammability(Oi) | 27 min. | IS04589 |
| Light ageing-UV Explosure | Pass | ISO 4892-3:2013 |

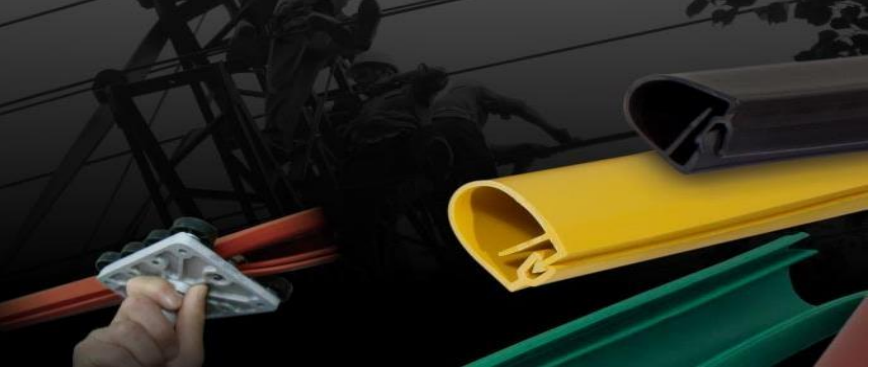

| Code | Size | Suitable condutor section | Max. condutor diameter | Standard packing |
| VIXPEX MV13 | 13 | lebih kecil dari 95mm2 | 13 mm | 20m/reel ;40m/carton |
| VIXPEX MV18 | 18 | 100-160mm2 | 18 mm | 20m/reel ;40m/carton |
| VIXPEX MV23 | 23 | 185-250mm2 | 23 mm | 20m/reel ;40m/carton |
| VIXPEX MV38 | 38 | 300-800mm2 | 38 mm | 20m/reel ;40m/carton |

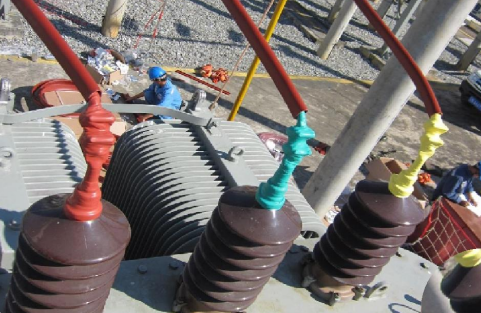

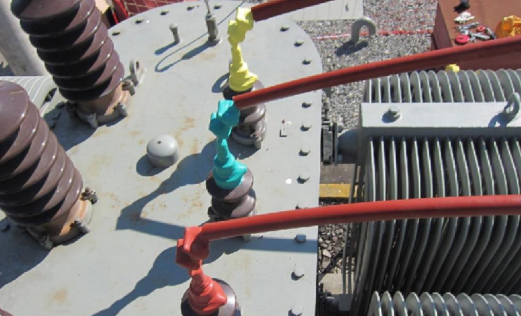

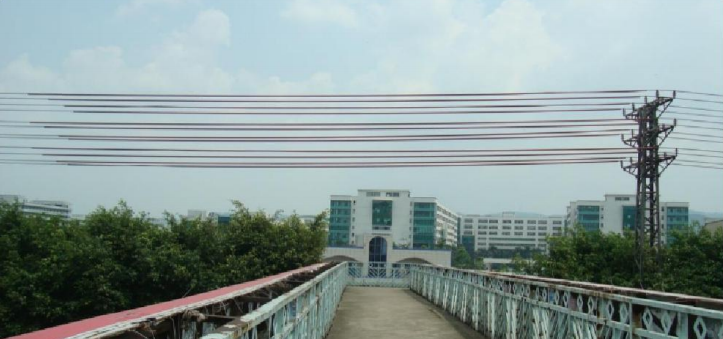

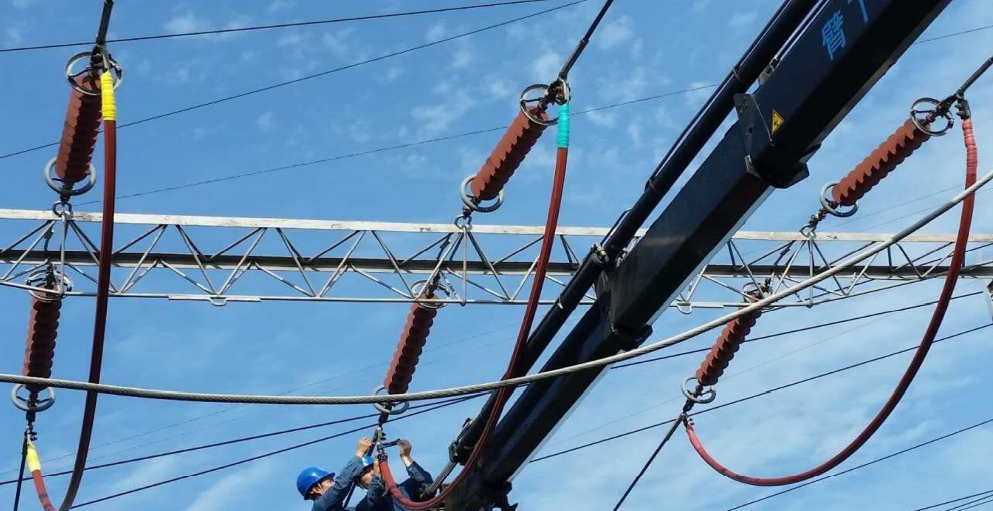

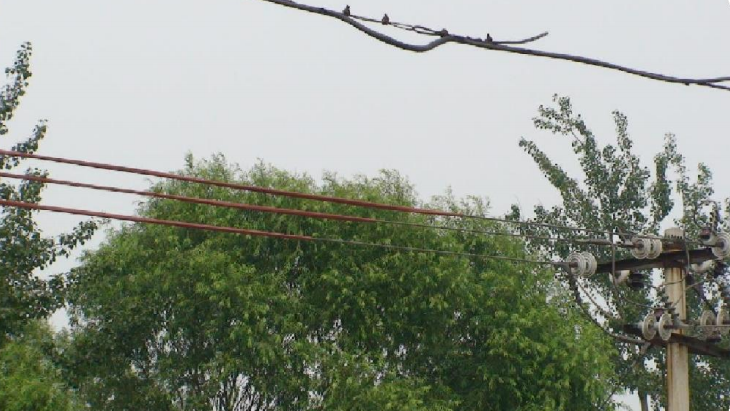

To provide insulation and protecting for overhead line core cables.prevent short circuit accidents caused by incidental contact of tree branches or wildlife. Also used for railway contact network overhead line system.improve insulation performance to ensure the safe operation of railway line.
• Anti- tracking
• UV resistance.and abra sion resistance
Easy installation with hand tool
• Standard color:red(black,green and yellow are available on request)
