SPESIFIKASI
| FUNCTION | It allows for location, identification and tracking of the route of object buried in the earth |

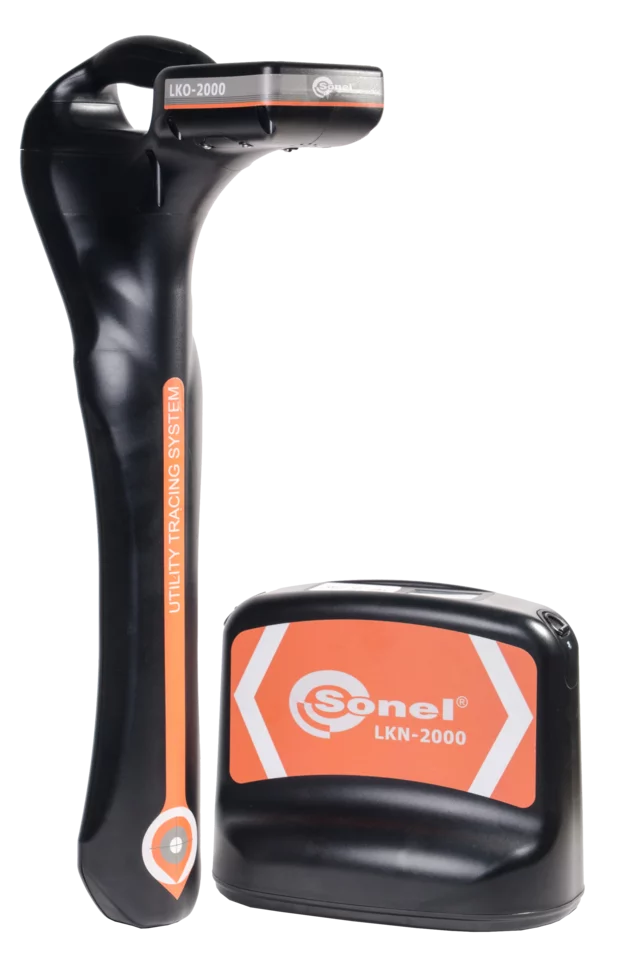

| A | RECEIVER (LKO-2000) | |
|---|---|---|
| 1 | Depth Measurement Range | Power mode : up to 3m, Radio mode : up to 2m, modes with active transmitter up to 4.6 m., probe mode up to 6m. |
| 2 | Accuracy of measurement (error) | 5% depth in linear or probe mode (from 0.2 m to 4.6 m), 10% depth in probe mode (from 4.6 m to 6 m) |
| 3 | Bluetooth | for remote transmitter control |
| 4 | Auto-off | Capability of selecting auto-OFF time after 5, 10, 20, or 30 minutes |
| 5 | Ingress Protection | IP65 |
| 6 | Batteries (Operating time ) | 2 x LR20, Up to 60 hours (at 20°C) |
| B | TRANSMITTER (LKN-2000) | |
|---|---|---|
| 1 | Output power control | 5 levels |
| 2 | Operating frequency | 512 Hz, 3140 Hz, 8192 Hz, 32768 Hz, 83,1 kHz, 200 kHz |
| 3 | Power in induction mode (max) | 3 W |
| 4 | Power for galvanic connection (max) | 12 W (for impedance of connected object : 100 Ჲ) |
| 5 | Bluetooth | for remote transmitter control |
| 6 | Auto-off | Capability of selecting auto-OFF time after 1,2,3,4,5,6,7,8 hours |
| 7 | Ingress Protection | IP65 |
| 8 | Batteries (Operating time ) | 10 x LR20, Up to 100 hours (level 2 output power at 20°C |

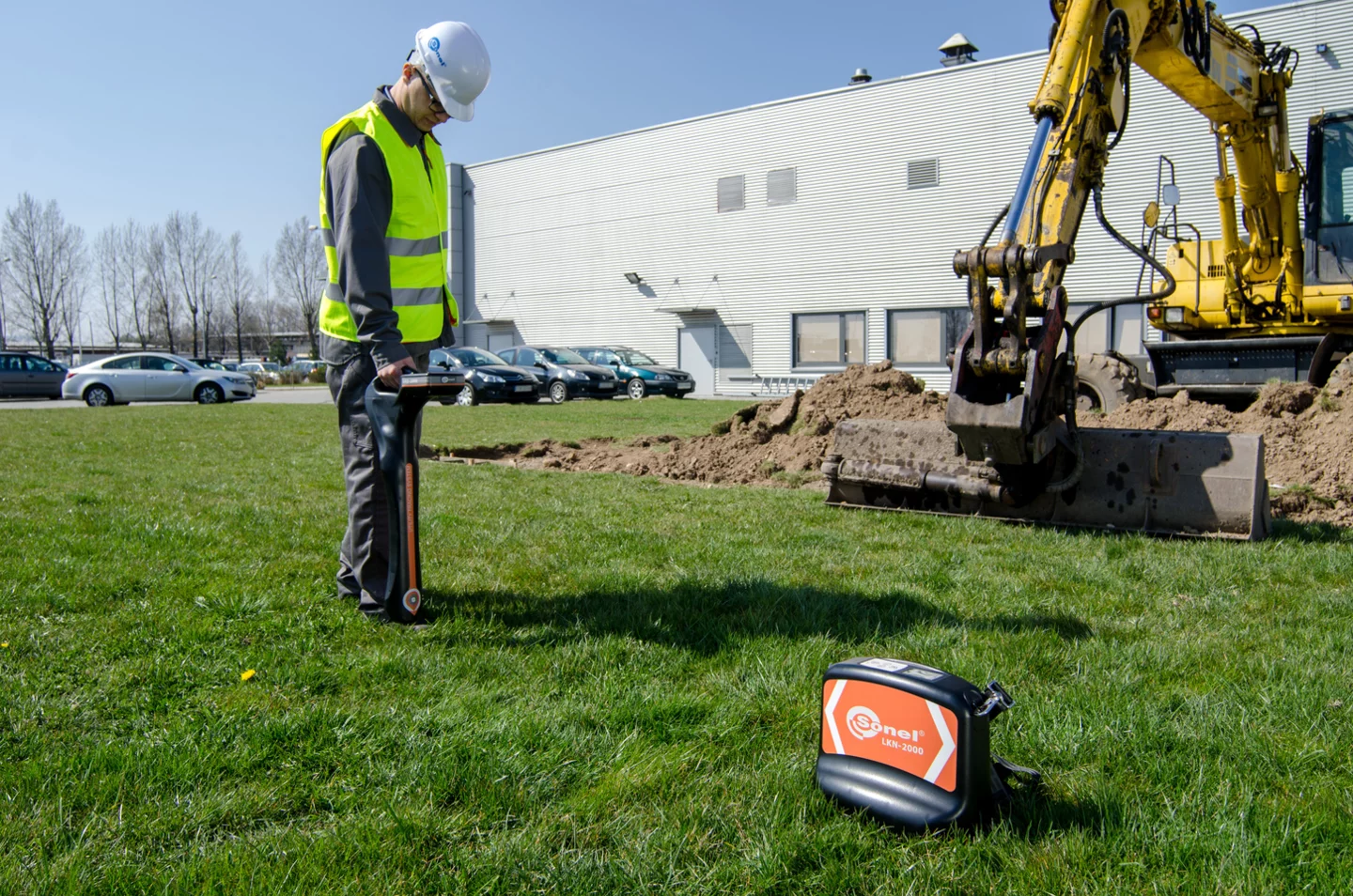

The variety and density of underground installation infrastructure continues to grow. Identifying buried installations has never been such a difficult and important task. Locating makes it possible to determine the actual position of an underground installation and to establish the correct place to start work, as well as to avoid dangerous accidents due to damage to the object being located.
