KT-256-PRO

Parameter	Description
Detector resolution	256 x 192 / 12 µm VOx
Detector	7.5~14 μm
Frame rate	25 Hz / 9 Hz
Sensitivity	45 mK
Focus	Fixed
Lens (field of vision / focal distance)	56° x 48°/3.2 mm
Spatial resolution (IFOV)	3.75 mrad
Display	2.4″ 240 x 320 px LCD
Image mode	IR / Visual / Infrafusion MIF / PiP
Temperature range	Range 1: -20°C…+150°C \| -4°F…+302°F Range 2: 0°C…+550°C \| 32°F…1022°F
Accuracy	±2°C \| ±4°F or ±2% of reading (for ambient temperature 15°C…30°C, object temp. ≥0°C)
Image analysis mode	Point. 3 areas. Temperature indication: min, max. Temp. alarm
Palettes	6
Super-resolution	2x, 512 x 384
Emissivity	Selectable from 0.01 to 1.00 or from the list
Measurement adjustment	Adjustable distance, ambient temperature (reflected)
Image file format	JPG
Video file format	IRGD (including temp. information)
Built-in features	Visual camera 2 MPix, LED flashlight, laser pointer
Wireless communication	Wi-Fi
Storage	Built-in memory (16 GB)
Interfaces	USB type C, tripod
Power supply	Li-Ion battery (operating time >11 hours), built-in charger (charging time <2.5 hour), AC adapter 100-240 V, 50/60 Hz
Operating temperature	-15°C…+50°C \| 5°F…122°F
Storage temperature	-40°C…70°C \| -40°F…158°F
Housing	IP54

Parameter

Description

Detector resolution

256 x 192 / 12 µm VOx

Detector

7.5~14 μm

Frame rate

25 Hz / 9 Hz

Sensitivity

45 mK

Focus

Fixed

Lens (field of vision / focal distance)

56° x 48°/3.2 mm

Spatial resolution (IFOV)

3.75 mrad

Display

2.4″ 240 x 320 px LCD

Image mode

IR / Visual / Infrafusion MIF / PiP

Temperature range

Range 1: -20°C…+150°C | -4°F…+302°F
Range 2: 0°C…+550°C | 32°F…1022°F

Accuracy

±2°C | ±4°F
or ±2% of reading
(for ambient temperature 15°C…30°C, object temp. ≥0°C)

Image analysis mode

Point. 3 areas. Temperature indication: min, max. Temp. alarm

Palettes

Super-resolution

2x, 512 x 384

Emissivity

Selectable from 0.01 to 1.00 or from the list

Measurement adjustment

Adjustable distance, ambient temperature (reflected)

Image file format

JPG

Video file format

IRGD (including temp. information)

Built-in features

Visual camera 2 MPix, LED flashlight, laser pointer

Wireless communication

Wi-Fi

Storage

Built-in memory (16 GB)

Interfaces

USB type C, tripod

Power supply

Li-Ion battery (operating time >11 hours), built-in charger (charging time <2.5 hour), AC adapter 100-240 V, 50/60 Hz

Operating temperature

-15°C…+50°C | 5°F…122°F

Storage temperature

-40°C…70°C | -40°F…158°F

Housing

IP54

Description

Step into thermal imaging

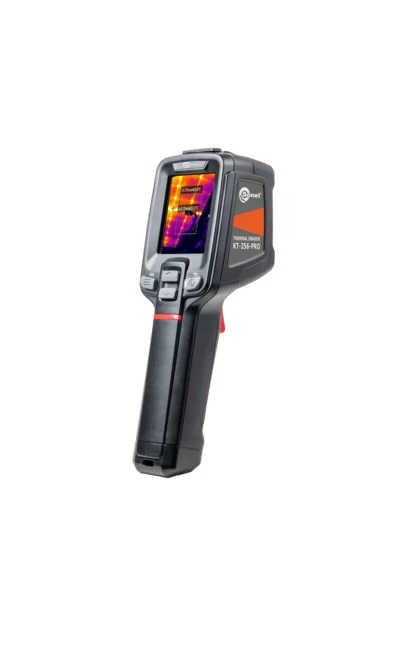

The Sonel KT-256-PRO thermal imaging camera is a special camera. Cost-effective, practical and handy, it is a powerful tool for everyday work. The camera is used for basic diagnostics. It is equipped with a matrix having a resolution of 256 x 192 pixels, supported by visual camera, laser pointer and additional features to fully meet the needs of users.

Application

KT-256-PRO is used always when the temperature of objects is important and may affect the operation of the equipment. Particularly useful in:

power engineering (including PV installations),
construction sector,
industry
HVAC.

Features

measuring range: -20°C…550°C (-20°F… 1022°F)
quick start
fast temperature measurement
automatic signalling of exceeded alarm threshold
saving IR images to internal memory
built-in Li-Ion battery with 11-hour working time
interfaces: USB type C
can be set up on a tripod
