Description
Real Sensor
-
A ceramic-packaged detector, professional benchmark for accuracy and detail
-
A true 384×288 infrared detector, ensuring durability, accuracy, and reliability in demanding industrial environments
-
A 17 µm pixel-pitch detector, that results in a stronger signal-to-noise ratio and sharper, highercontrast thermal images
Real Focus
-
A hallmark of professional imagers, makes true professional imaging achievable for every technician
-
Enables users to achieve precise clarity across varying distances, ensuring accurate temperature readings
-
With a minimum imaging distance of 0.15m, it can even clearly reflect the temperature of a PCB
Real Professional
-
With an IFOV of 1.14 mrad, it’s capable of capturing finer temperature differences and achieving more accurate imaging
-
5-megapixel industrial-grade digital camera; Images will remain clear even in report
-
3.5-inch IPS LED touchscreen display with Gorilla explosion-proof glass
Six Professional Edges

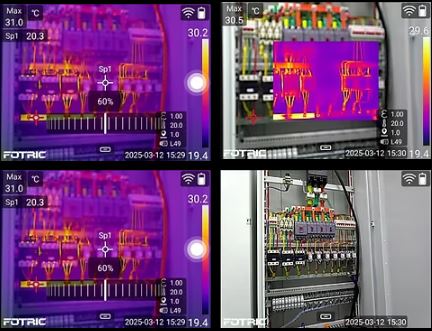

T-DEF® Blend Mode
Exclusive T-DEF® visible-light temperature measurement with infrared transparency adjustable from 0%–100%, automatically aligned with IR imaging.
Ultra-close Imaging
Imaging from as close as 0.15 m, ideal for PCBs, electrical connection points, and precision components, breaking the conventional thermal camera application limits.
Measurement Parameter Compensation
Full parameter correction including emissivity, ambient temperature, reflected temperature, and IR window ransmittance, ensuring researchgrade measurement accuracy.
High Refresh Rate
30 Hz high-frame-rate real-time imaging, smooth and lag-free, capturing transient temperature rises and dynamic targets.
Versatile Measurement Tools
Supports 20 measurement points, 10 measurement boxes, and 10 measurement lines, covering complex scenes far beyond comparable products.
Made for Continuous Operation
≥ 4 hours battery life, 2.5 h fast charge to 90%, supports USB-C external power for uninterrupted, all-day operation.
Features
Image Modes
Switch freely between infrared detection, blend mode, picture-in-picture overlay, and visible-light mode for more intuitive diagnostics.

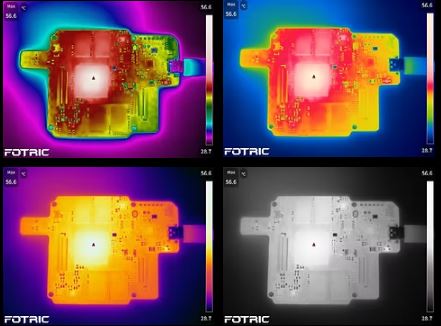

Palettes
Six professional color palettes flexibly highlight temperature differences, making hidden issues immediately visible.

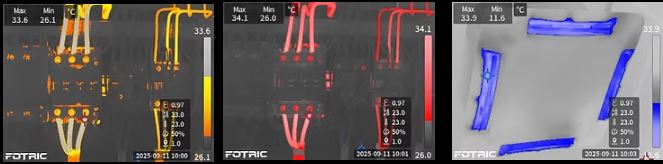

Color Alarm
Instantly highlight over-temperature, under-temperature, and temperature range anomalies, so irregularities are obvious at a glance.
