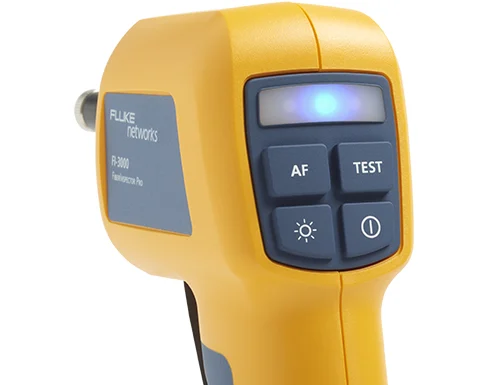

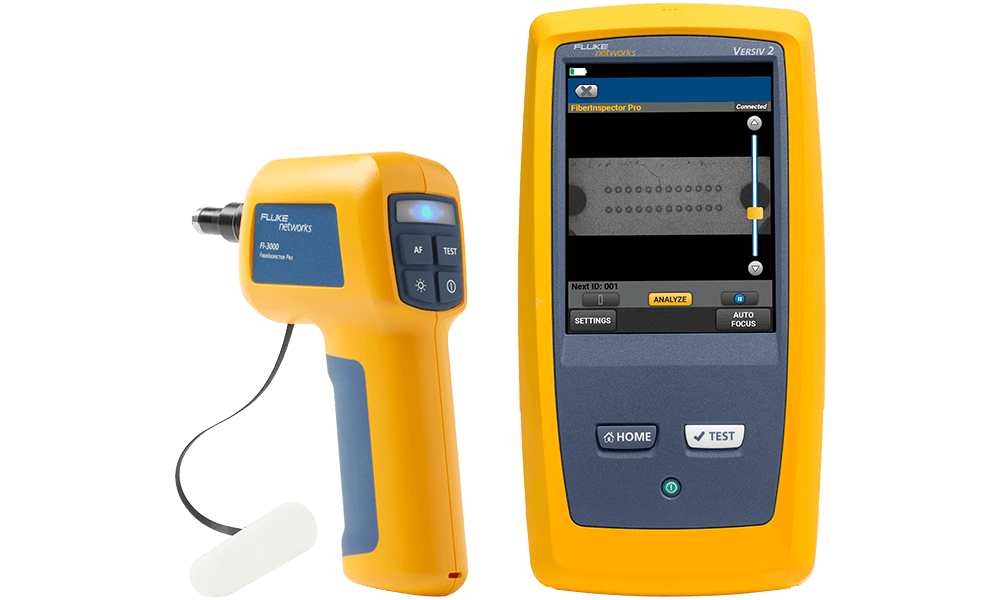

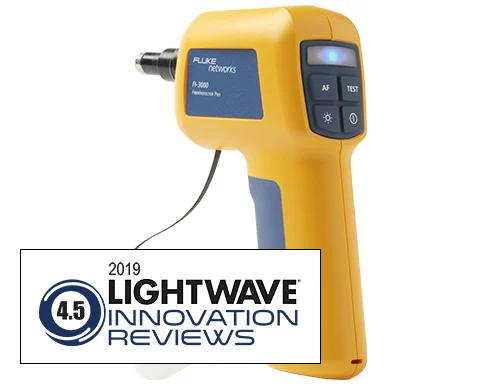

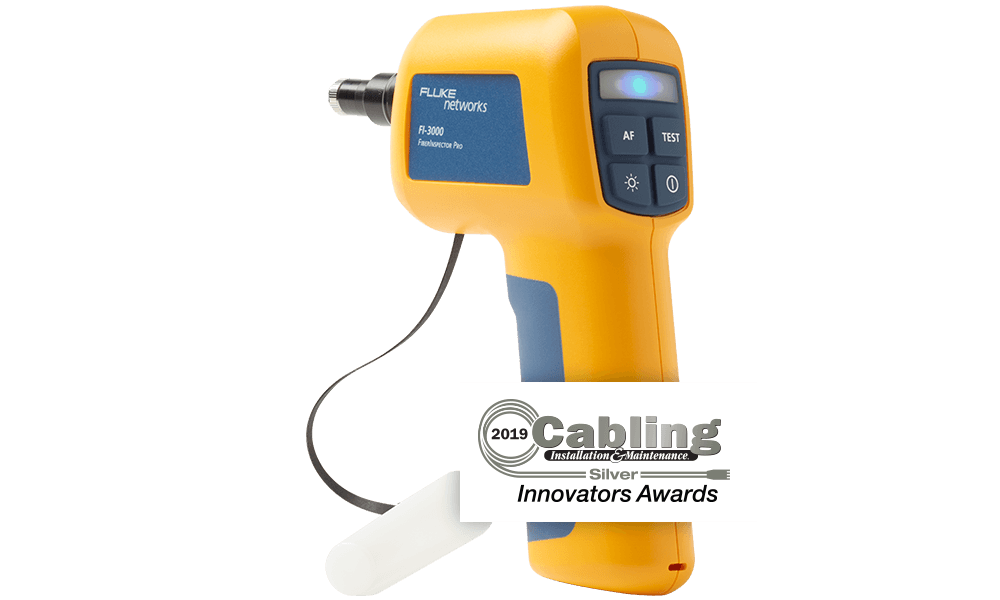

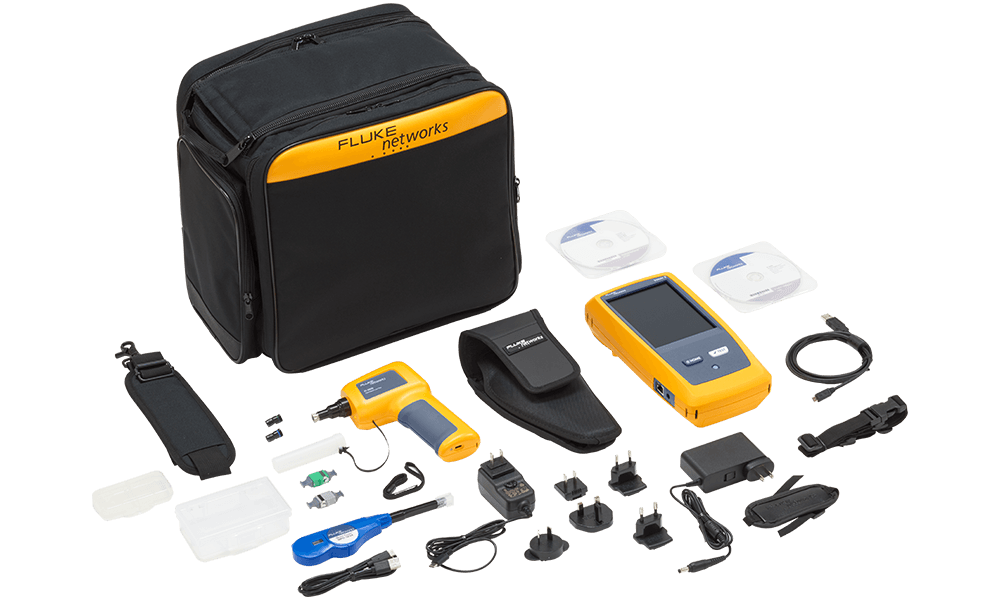

FI-3000 / FI2-7300 FiberInspector™ Ultra Camera

SPESIFIKASI

Optional automated Pass/Fail Test Time            Less than 2 seconds per fiber

Camera type                                                          5 Megapixel 1/4-inch CMOS sensor

Field of view                                                          610 µm x 460 µm

Resolution                                                             1 µm

Light source                                                           LED, >100,000 hr life

Endface illumination                                            Coaxial blue LED

Port illumination                                                   White LED

Battery Type                                                          Lithium-ion; 10.8 hour life

Power Adapter                                                      Input: 100 to 240 VAC ±10%, 50/60Hz

Output: 15 VDC, 2 A maximum

Class II

Description

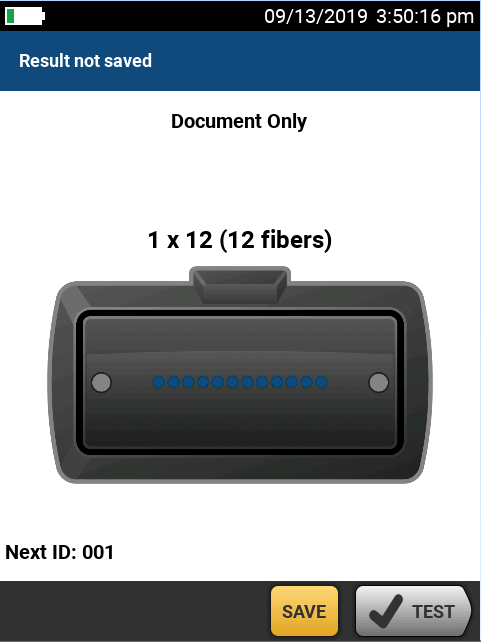

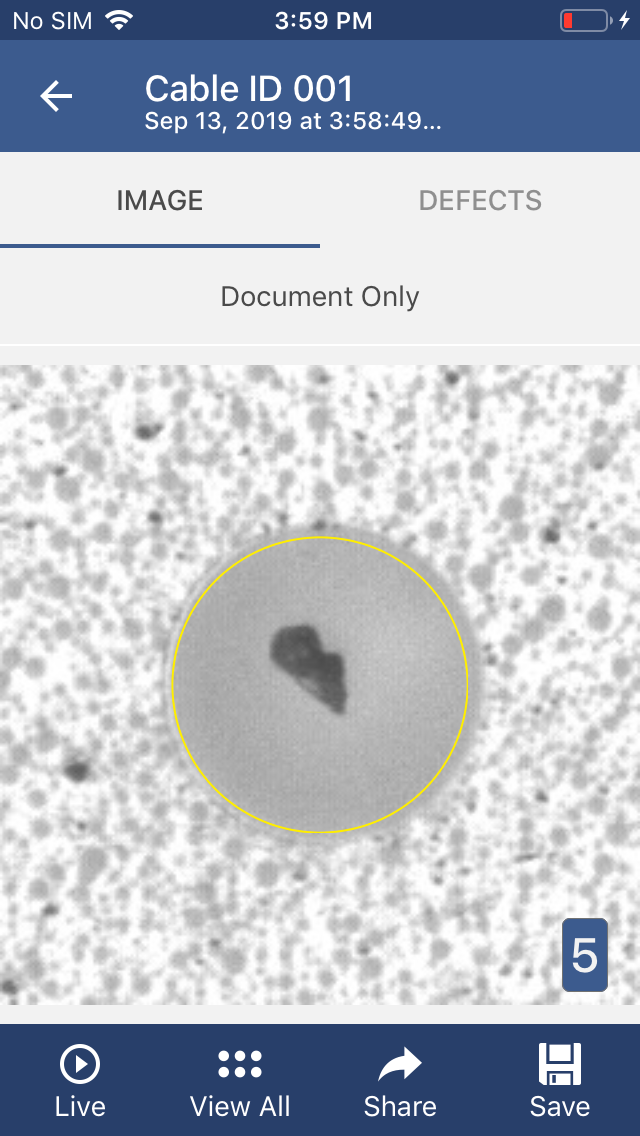

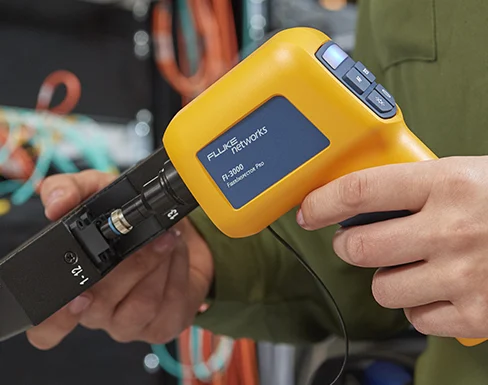

The FI-3000 FiberInspector Ultra offers an extensive feature set that makes testing MPO fiber trunks, cassettes, array cables easy and efficient. The multiple camera design provides an instant Live View with simple touchscreen gestures to move from full trunk to individual endfaces in real time.  Touch “TEST”, and in seconds, you’ll get an automated PASS/FAIL result compliant with IEC 61300-3-35. Store results on your phone and share them through text messages, email or use the industry-leading LinkWare platform to store complete project reports including copper, fiber loss, OTDR, and endface images. Compact, ergonomic design with autofocus makes it comfortable and fast even when you’re testing hundreds of cables or ports.

Brand

Fluke Network
