CMM-60

SPESIFIKASI

Measurement functions Range Resolution Accuracy
DC voltage 50 mV / 500 mV / 5 V / 50 V / 500 V / 1000 V from 0.001 mV from ±(0.025% m.v.+ 5 digits)
AC voltage (TRMS) 50 mV / 500 mV / 5 V / 50 V / 500 V / 1000 V from 0.001 mV from ±(0.3% m.v. + 25 digits)
DC current 500 μA / 5000 μA / 50 mA / 500 mA / 10 A from 0.01 μA from ±(0.1% m.v.+ 20 digits)
Resistance 50 Ω / 500 Ω / 5 kΩ / 50 kΩ / 500 kΩ / 5 MΩ / 50 MΩ from 0.001 Ω from ±(0.05% m.v. + 10 digits)
Frequency 50 Hz / 500 Hz / 5 kHz / 50 kHz / 500 kHz / 5 MHz / 10 MHz from 0.001 Hz ±(0.01% m.v.+ 10 digits)
Capacitance 5 nF / 50 nF / 500 nF / 5 μF/ 50 μF / 500 μF / 10 mF from 0.001 nF from ±(2% m.v. + 40 digits)
Duty cycle (%) 0.10…99.90% 0.01% ±(1.2% m.v. + 2 digits)
4-20 mA% current measurement -25.00…125.00% 0.01% ±50 digits
Temperature measurement (°C) -50.0…+1000.0°C 0.1°C ±(1.0% m.v. + 2.5°C)
Temperature measurement (°F) -58.0…+1832.0°F 0.1°F ±(1.0% m.v. + 4.5°F)

“m.v.” – measured value

Basic features:

  • Counting: 50.000 digits
  • The HOLD function
  • Manual / automatic range selection
  • Relative measurement
  • MAX / MIN / AVG measurement
  • Beeper
  • Diode test

Advanced features:

  • TRMS measurement
  • Frequency band for TRMS: 10 000 Hz
  • AC+DC measurement
  • Low-pass filter
  • dBV / dBm measurement
  • PEAK HOLD function
  • Bluetooth communication
  • Memory
    • internal
      • measurements: 2000 results
      • recorder: 10 000 points, sampling frequency: from 1 Hz
    • external
      • in mobile application
  • Trend Capture function
  • Date and time of measurement

Other features:

  • Battery indicator
  • Automatic shutdown function
  • Rechargeable battery
  • Display:
    • Type: 3.5” color TFT LCD 320 x 240 pixels
Download
Category

Description

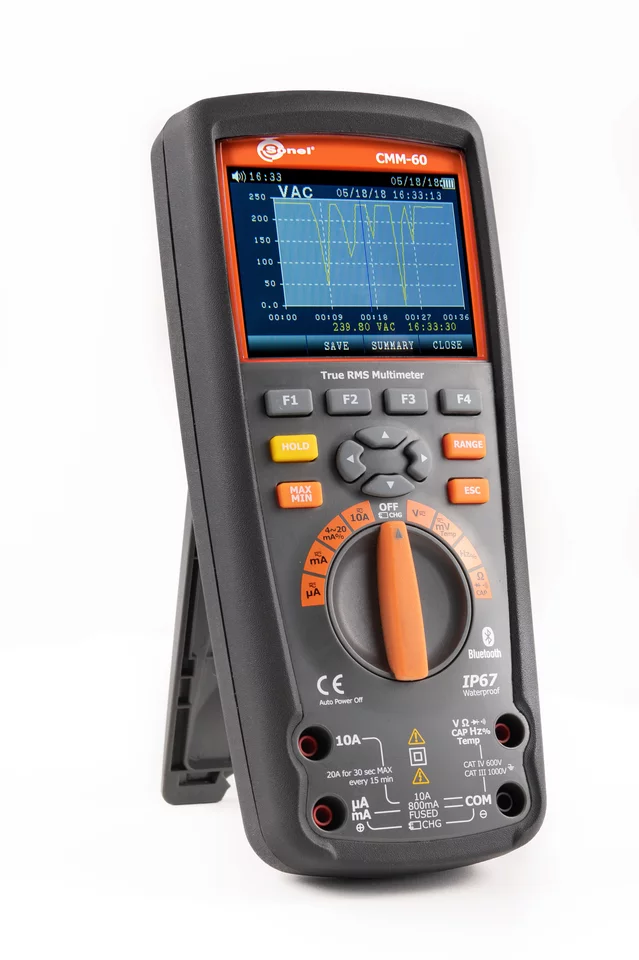

Industrial Multimeter Sonel CMM-60 – powerful tool for diagnostics and troubleshooting in electromechanical equipment, electricity networks and other applications

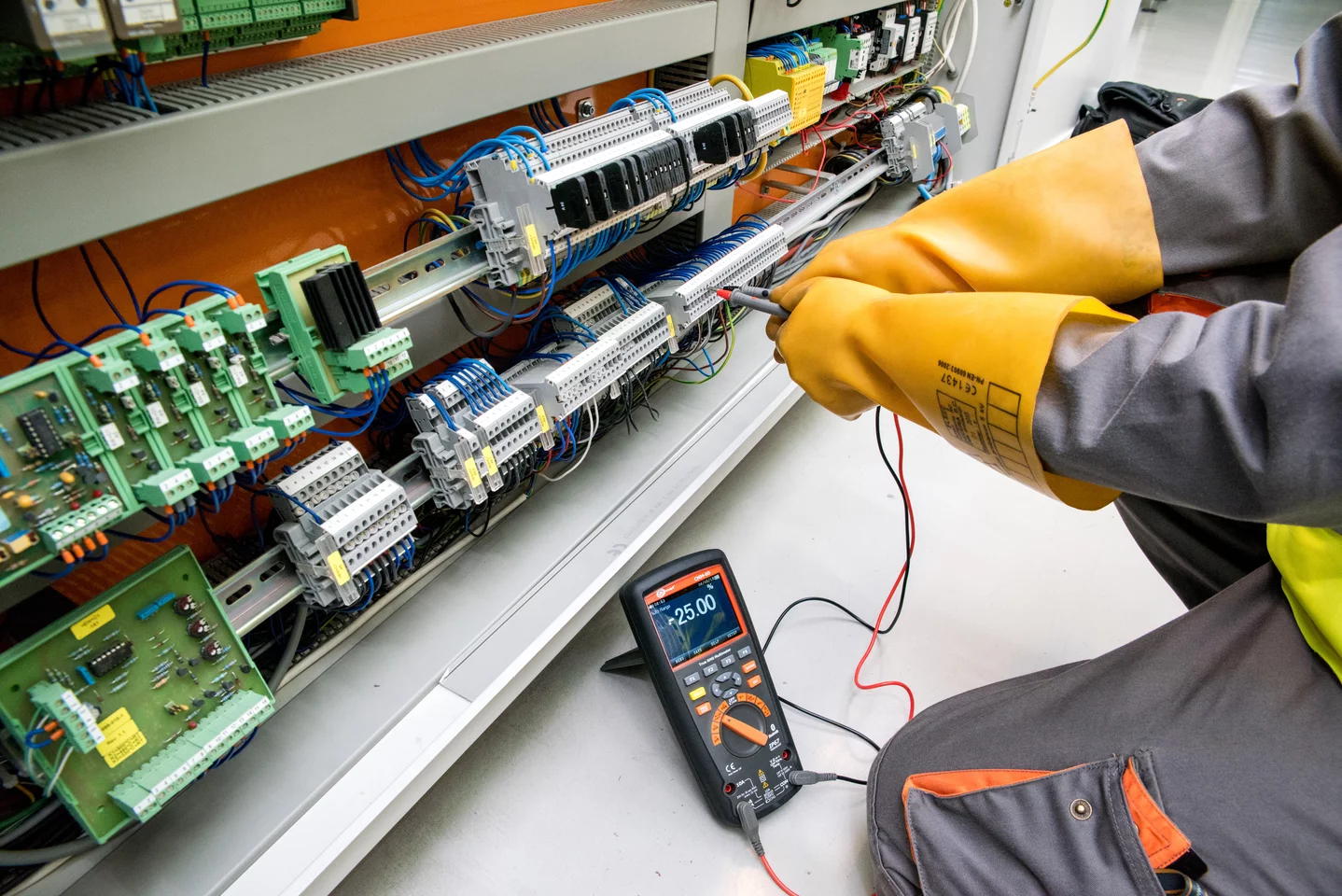

The Sonel CMM-60 advanced industrial multimeter is an instrument designed for diagnostics of potential problems in the operation of electromechanical equipment, industrial automation, motors or power distribution equipment. This professional tool is characterised by high precision measurement, safety in industrial conditions and convenience in use. With its assistance, it is possible to detect at an early stage potential problems and irregularities that occur in the operation of specific equipment or machines.

Versatile and equipped with numerous functions, the Sonel CMM-60 multimeter is the right choice not only for electricians, but also for service technicians and garages, as well as for representatives of the broadly understood industrial sector. The instrument enables the recording of data collected during testing due to the built-in memory and a special Trend Capture function. It is also possible to transfer data and analyse results using the CMM-60 Multimeter Software.

Brand

Sonel
